RCY8C0FA-1

Features 2835 SMD LED with High Strength Frame, High Luminous; ERP Standard Spectrophotometry,Single Bin Supply,Good Color Consistency; Dual Side Pure Copper FPC Design, Low Line Loss; “U” Shape Design for Solder Pad, to Increase Tensile and Bending Strength; Uniform Lighting, No Dark Block and No Shade; Products Passed CE、RoHS、UL Certification,to Ensure the Quality; Application: Suitable in Hotel, Supermarket, Home, Cabinets, Exhibition Shelves, etc., can be used for Main, or Indirect, or Dark Groove, Outline, Decorative lighting and other purposes.

Classification:

RY Neon Flexible Strips


联系我们

Description

Profiles

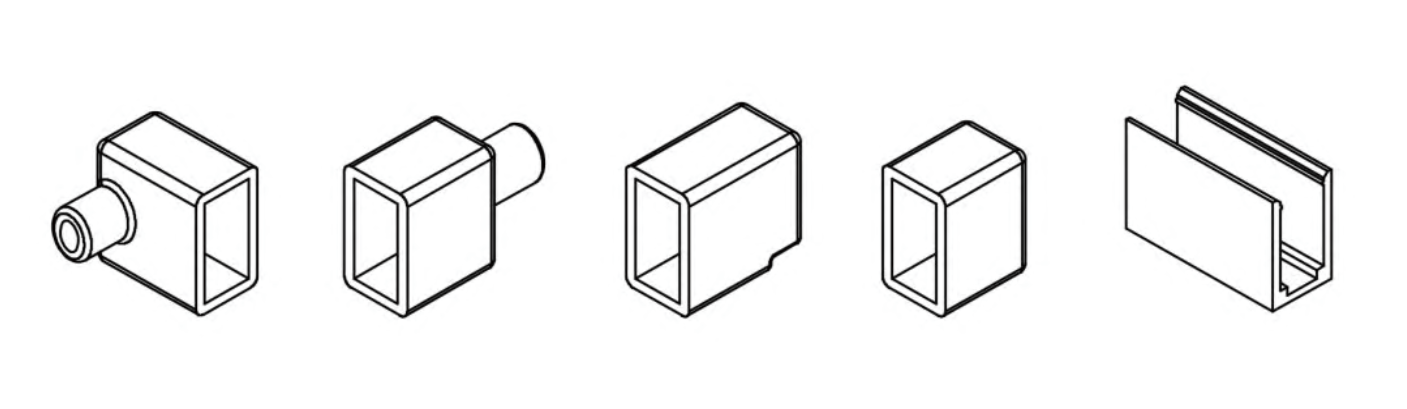

 Accessories




PCB Width(mm)
Weight(g/m)
Section Size(mm)
View
Cutting Mark
Connection Plug
Tail Plug
Clip
8 77
6*12
Side Lighting
Yes



Product No. LED Color
CRI
LED
pcs/m
SDCM Voltage
(V DC)

Current (mA/m)

Power
(W/m)
CCT (K)
WL(nm)
Luminous
(Lm/m)
Light Efficiency
(Lm/W)
RCY8C0FA-1 White ≥80 120 ≤5 12 667 8 1800-12000 320-400 40-50
Red --- --- 620-625 96 12
Green --- --- 525-530 288 36
Blue --- --- 465-470 64 8
