RCY6C0FA
Features 2835 SMD LED with High Strength Frame, High Luminous; ERP Standard Spectrophotometry，Single Bin Supply，Good Color Consistency； Dual Side Pure Copper FPC Design, Low Line Loss； “U” Shape Design for Solder Pad, to Increase Tensile and Bending Strength； Uniform Lighting, No Dark Block and No Shade； Products Passed CE、RoHS、UL Certification，to Ensure the Quality； Application: Suitable in Hotel, Supermarket, Home, Cabinets, Exhibition Shelves, etc., can be used for Main, or Indirect, or Dark Groove, Outline, Decorative lighting and other purposes.
Classification：
RY Neon Flexible Strips
联系我们
Description
| Profiles |
Accessories
|
||||||
 |
 |
 |
|||||
|
PCB Width(mm)
|
Weight(g/m)
|

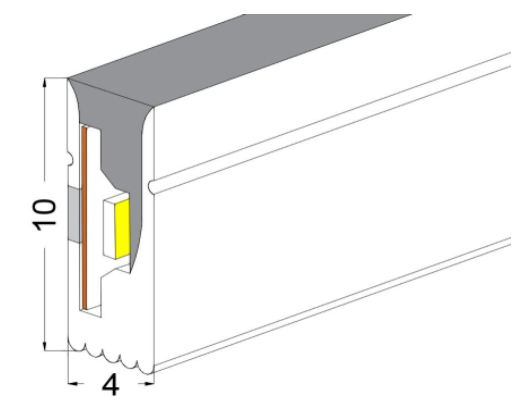

Section Size(mm)
|
View
|
Cutting Mark |

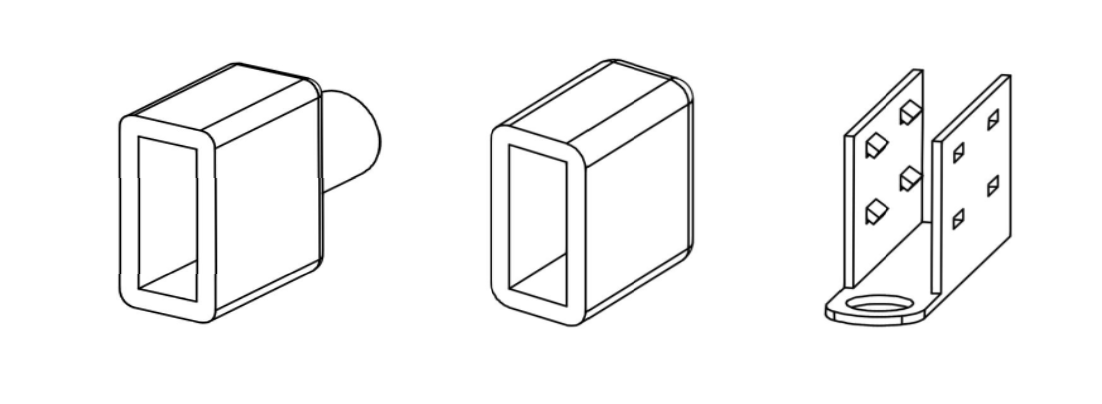

Connection Plug
|
Tail Plug
|
Clip
|
| 5 | 43 |
4*10
|
Side Lighting |
Yes
|
|||
| Product No. | LED Color | CRI |
LED pcs/m |
SDCM | Voltage (V DC) |
Current (mA/m) |
Power (W/m) |
CCT (K) WL(nm) |
Luminous (Lm/m) |
Light Efficiency (Lm/W) |
| RCY6C0FA | White | ≥80 | 120 | ≤5 | 12 | 667 | 8 | 1800-12000 | 320-400 | 40-50 |
| Red | --- | --- | 620-625 | 96 | 12 | |||||
| Green | --- | --- | 525-530 | 288 | 36 | |||||
| Blue | --- | --- | 465-470 | 64 | 8 |
Pre
Next
Pre
Next
Features Used 2835 SMD LED with High Brightness and Dual Chips; ERP Standard Spectrophotometry，Single Bin Supply，Good Color Consistency； Room Temperature & High Brightness; Products Passed CE、RoHS、UL Certification，to Ensure the Quality； High Efficacy, Efficiency can up to 180LM/W； Widely Applied in High-end Exhibition Cabinets, Cosmetics Display, Shelf props.
Application Suitable in Hotel. Supermarket. Home. Cabinets. Exhibition Shelves . etc.. Used for main , or indirect, or dark groove ,outline, decorative lighting and other purposes. Features Newest ID design. Concise, Beauty and high sense. 5050 SMD LED with double color temperature. Good light-mixing effect. ERP standard spectrophotometry. Good color uniformity. Double-sided pure copper PCB. Low line loss. Sn plating for solder pad and strong anti-oxidation. CE, RoHS, UL compliant. Quality assurance.
Features 5050 RGBWW SMD LED， High Luminous; ERP Standard Spectrophotometry，Single Bin Supply，Good Color Consistency； “U” Shape Solder Pad Design, easy to soldering, Firm joints and no Solder False； Products Passed CE、RoHS、UL Certification，to Ensure the Quality；
-
