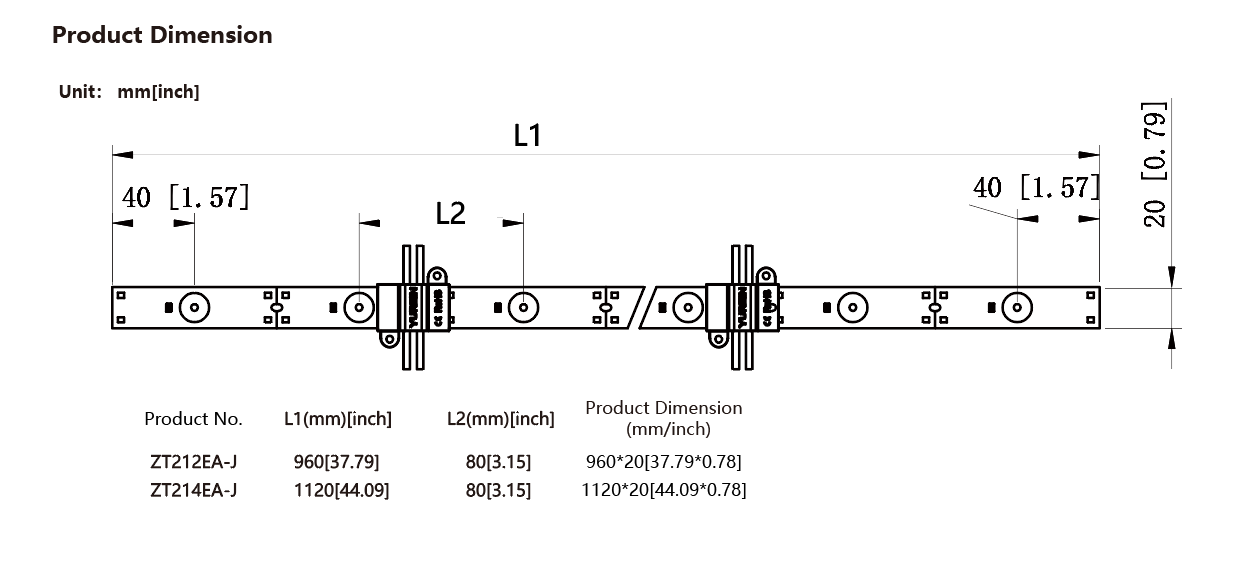

ZT212EA-J /ZT214EA-J
Features Used 3030 SMD LED, Long Life and Low Attenuation； Concise and Convenient Rigid Bars Structure Design； Product can be cut to use； Adopt Bigger Beam Angle Optical Lens： 170 Degrees; Application Apply for 6~20cm[2.36~7.87 inch] Thickness Single Side Light Boxes;
Classification：
ZT Dual Roll Up Diffuse Reflective Rigid Bars
联系我们
Description
| Product No. | LED Color | LED Qty (pcs) |
Beam Angle (°) |
Voltage (V AC) |
Current (mA) |
Power (W) |
CCT(K) | Luminous (LM) |
)Light Efficiency (Lm/W) |
| ZHP026FG-J-A | White | 26 | 115 | 220 | 50 | 11 | 1800-12000 | 1045-1155 | 95-105 |
| ZHP026FG-J-B | |||||||||
| ZHP013FG-J-A | 13 | 25 | 5.5 | 520-580 | |||||
| ZHP013FG-J-B |
Features Used 2835 SMD LED with High Brightness and Dual Chips; ERP Standard Spectrophotometry，Single Bin Supply，Good Color Consistency； Room Temperature & High Brightness; Products Passed CE、RoHS、UL Certification，to Ensure the Quality； High Efficacy, Efficiency can up to 180LM/W； Widely Applied in High-end Exhibition Cabinets, Cosmetics Display, Shelf props.
Application Suitable in Hotel. Supermarket. Home. Cabinets. Exhibition Shelves . etc.. Used for main , or indirect, or dark groove ,outline, decorative lighting and other purposes. Features Newest ID design. Concise, Beauty and high sense. 5050 SMD LED with double color temperature. Good light-mixing effect. ERP standard spectrophotometry. Good color uniformity. Double-sided pure copper PCB. Low line loss. Sn plating for solder pad and strong anti-oxidation. CE, RoHS, UL compliant. Quality assurance.
Features 5050 RGBWW SMD LED， High Luminous; ERP Standard Spectrophotometry，Single Bin Supply，Good Color Consistency； “U” Shape Solder Pad Design, easy to soldering, Firm joints and no Solder False； Products Passed CE、RoHS、UL Certification，to Ensure the Quality；
-
