RY0C0FA-2

Features
2835 SMD LED with High Strength Frame, High Luminous;
ERP Standard Spectrophotometry,Single Bin Supply,Good Color Consistency;
Dual Side Pure Copper FPC Design, Low Line Loss;
“U” Shape Design for Solder Pad, to Increase Tensile and Bending Strength;
Uniform Lighting, No Dark Block and No Shade;
Products Passed CE、RoHS、UL Certification,to Ensure the Quality;
Application:
Suitable in Hotel, Supermarket, Home, Cabinets, Exhibition Shelves, etc., can be used for Main, or Indirect, or Dark Groove, Outline, Decorative lighting and other purposes.
Retail price
0.0
Market price
0.0
Number of views:
1000
Product serial number
Quantity
-
+
Stock:
0
1
产品描述

Profiles
 Accessories




PCB Width(mm)
Weight(g/m)
Section Size(mm)
View
Cutting Mark
Connection Plug
Tail Plug
Clip
10 226

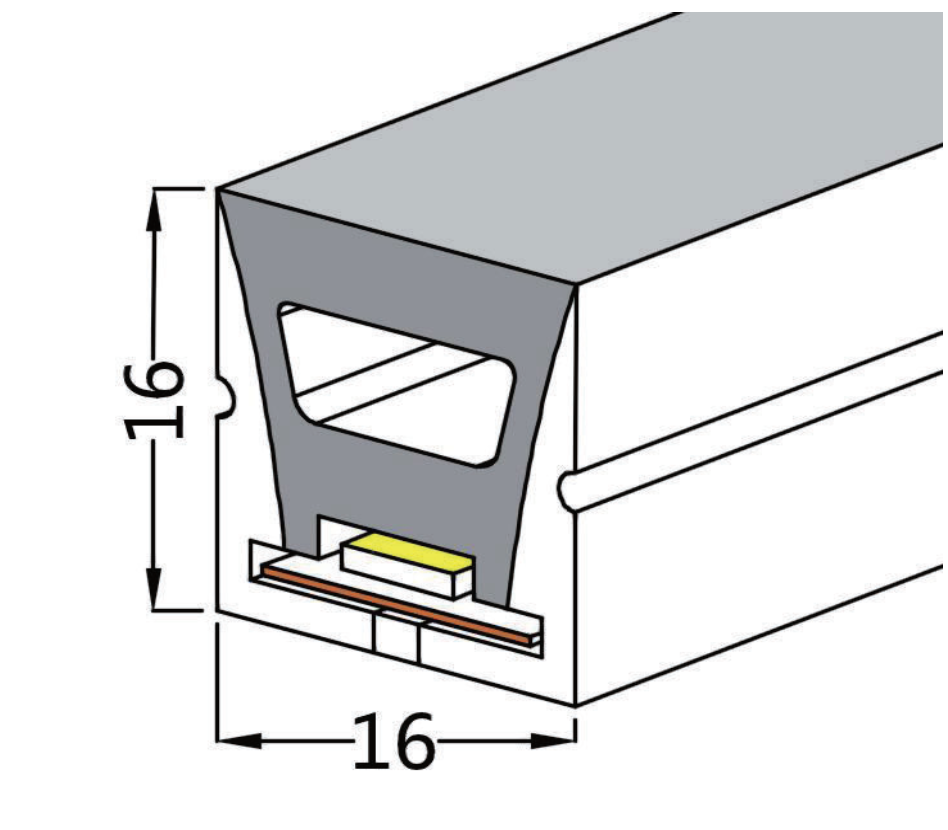

16*16

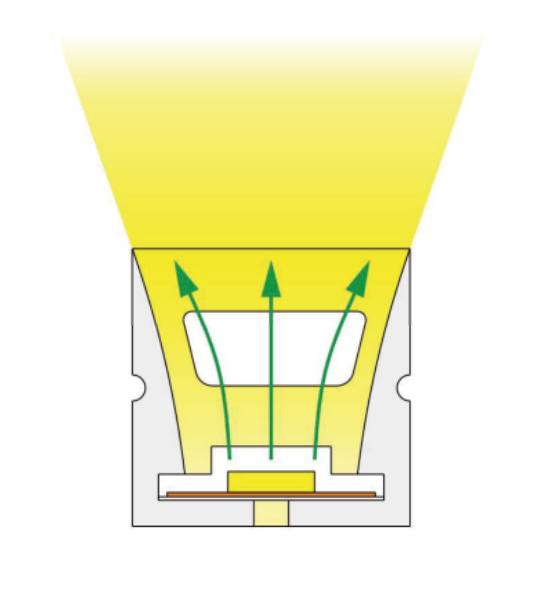

Top Lighting
Yes



Product No. LED Color
CRI
LED
pcs/m
SDCM Voltage
(V DC)

Current (mA/m)

Power
(W/m)
CCT (K)
WL(nm)
Luminous
(Lm/m)
Light Efficiency
(Lm/W)
RY0C0FA-2 White ≥80 120 ≤5 12 667 8 1800-12000 400-800 50-60
Red --- --- 620-625 120 15
Green --- --- 525-530 320 40
Blue --- --- 465-470 80 10
