RCY5C0FA
Application Suitable in Hotel. Supermarket. Home. Cabinets. Exhibition Shelves . etc.. Used for main , or indirect, or dark groove ,outline, decorative lighting and other purposes. Features 2835 SMD LED with super luminous efficiency. Long Life. Dual-color Extrusion Process. Small Size. Can be bend slightly. CE Certification and comply with RoHS. Quality assurance. Double-sided pure Copper PCB. Low line loss. Silicon tube. High IP Grade and excellent corrosion resistance.
Classification：
RY Neon Flexible Strips
联系我们
Description
| Profiles |

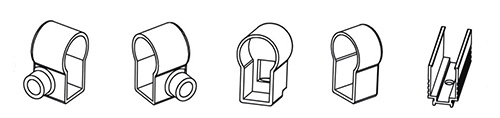

Assembly / Installing Accessories
|
||||||
 |
 |
 |
|||||
|
PCB Width(mm)
|
Weight(g/m)
|
Section Size(mm)10*10
|
Lighting Direction
|
Cutting Mark |
End Cap with Hole
|
End Cap without Hole
|
AL Clip
|
| 5 | 35 |
04*10.
|
Side Emitting |
Yes
|
|||
| Product No. | LED Color | CRI |
LED pcs/m |
Voltage (V DC) |
Current (mA) 1m |
Power (W) 1m |
CCT (K) Wave Length(nm) |
Light Efficiency (Lm/W) |
Luminous Flux (Lm) |
| RCY5COFA | White | ≥90 | 120 | 12 | 83 | 8 | 3000 | 30 | 240 |
Features Used 2835 SMD LED with High Brightness and Dual Chips; ERP Standard Spectrophotometry，Single Bin Supply，Good Color Consistency； Room Temperature & High Brightness; Products Passed CE、RoHS、UL Certification，to Ensure the Quality； High Efficacy, Efficiency can up to 180LM/W； Widely Applied in High-end Exhibition Cabinets, Cosmetics Display, Shelf props.
Application Suitable in Hotel. Supermarket. Home. Cabinets. Exhibition Shelves . etc.. Used for main , or indirect, or dark groove ,outline, decorative lighting and other purposes. Features Newest ID design. Concise, Beauty and high sense. 5050 SMD LED with double color temperature. Good light-mixing effect. ERP standard spectrophotometry. Good color uniformity. Double-sided pure copper PCB. Low line loss. Sn plating for solder pad and strong anti-oxidation. CE, RoHS, UL compliant. Quality assurance.
Features 5050 RGBWW SMD LED， High Luminous; ERP Standard Spectrophotometry，Single Bin Supply，Good Color Consistency； “U” Shape Solder Pad Design, easy to soldering, Firm joints and no Solder False； Products Passed CE、RoHS、UL Certification，to Ensure the Quality；
-
